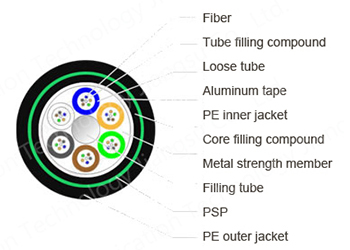

Armoured loose tube fiber optic cable comes with a steel central strength member,containing maximum up to 24 water blocking gel filled tubes and each tube contains up to maximum 12 fibers.The cable jacket incorporates a water blocking tape,a layer of corrugated steel tape armour and double PE jackets preventing any water penetration.The corrugated steel tape armouring provides additional mechanical protection &100% rodent proof thus making it suitable for direct burial &harsh environment installations.
Application
Direct buried;Duct.
Technical Parameters
|
Cable Type (Increased by 2 fibers) |
Fiber Count |
Tubes + Fillers |
Fiber in Tube |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
|
GYTY53 2 ~36 |
2 ~36 |
6 |
6 |
12.6 |
184 |
1000/3000 |
1000/3000 |
|
GYTY53 38 ~ 72 |
38 ~ 72 |
6 |
12 |
14.0 |
216 |
1000/3000 |
1000/3000 |
|
GYTY53 74 ~ 96 |
74 ~ 96 |
8 |
12 |
15.7 |
260 |
1000/3000 |
1000/3000 |
|
GYTY53 98 ~ 120 |
98 ~ 120 |
10 |
12 |
17.4 |
301 |
1000/3000 |
1000/3000 |
|
GYTY53 122 ~ 144 |
122 ~ 144 |
12 |
12 |
19.0 |
354 |
1000/3000 |
1000/3000 |
|
GYTY53 144 ~ 288 |
144 ~ 288 |
18 |
12 |
19.0 |
350 |
1000/3000 |
1000/3000 |
Standards
Complies with standard YD/T 901-2009 as well as IEC 60794-1.
