Non-metal Fiber Optic Cable

Your current location:Home > Products

GYFTY Loose Tube Non-metallic Cable

Email Us Inquiry Us

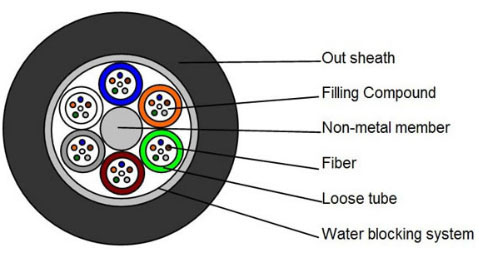

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A fibre reinforce plastic locates in the center of core as a non-metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.


Characteristics£º

1.Excellent mechanical and temperature performance

2.Special tube filling compound ensure a critical protection of fibre and resist the water

3.100% core filling water prevent cable jelly to ensure the cable watertight

4.Single FRP as the central strength member to withstand axial loads

5.Outer sheath protects cable from ultraviolet radiation

Installation£ºDuct, Non self-supporting aerial

Applications£ºLong distance, LAN communication

Standards£ºYD/T 901 / IEC 60794-3-10

Temperature Range£ºTransportation£º-40¡æ~+70¡æ£»Installation£º-5¡æ~+50¡æ£»In use£º-40¡æ~+70¡æ

Technical parameter:

Fiber count(core)

2-42

44-72

74-84

86-96

98-108

110-120

122-132

134-144

Outer diameter£¨mm£©

10.4

11.2

12.2

14.0

14.8

15.8

16.6

17.4

Cable weigh£¨kg/km£©

90

100

115

180

195

220

240

265

Minimum tensile strength£¨N£©

Short-term£º           1500

Long-term:              600

Minimum crushing£¨N/100mm£©

                  Short-term£º           1000

                  Long-term:             300

Bending radius

Static£º15 times of diameter     Dynamic£º30 times of diameter

Standard length for delivery£¨km£©

2¡«4

Temperature range£¨0C£©

£­40¡«£«60
